ASI Bus Cable
AS-Interface two core cables provide common data and power transition through the use of a single master system. Designed to withstand industrial use the cables are manufactured from tough rubber materials. The unique polarised sheath formation provides ‘right first time’ termination with penetration terminals.
Image representative of product style, product supplied may vary.
- Designed to withstand industrial use
- TPE jacket
- Available in red, black or yellow
Construction
Fine stranded tinned copper conductors – 1.5mm², Thermoplastic elastomer, cores laid up parallel, Thermoplastic elastomer sheath.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Core Identification: | Blue & Brown |
| Operating Temperature: | -40°C to +105°C static |
| -30°C to +105°C flexing | |
| Conductor: | Conductor 1.5mm² – 84/0.15mm tinned copper |
| Dimensions: | 4.2mm x 10.2mm |
RELATED PRODUCTS
Echelon LonWorks 16AWG Cable
SKU:
SKU539
A range of single pair Bus cables is available for the LonWorks system allowing convenient wiring via the Free Topology concept. Due to the popularity of the system for building management applications in the public sector these cables are now stocked in Low Smoke Halogen Free versions. Duct grade and SWA options can also be manufactured for quantities as low as 100m.

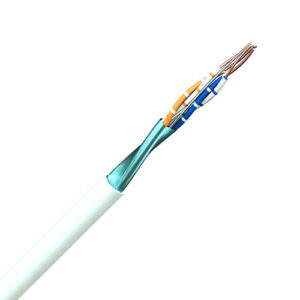

Echelon LonWorks 22AWG Cable
SKU:
SKU540
Designed for use on industrial and commercial bus systems, these cables have become increasingly popular on Building Management Systems (BMS). Available as one and two pair cables, screened and unscreened in Low Smoke Halogen Free compounds they provide the ideal low cost solution to BUS wiring.
CPR-Compliant options are available for this cable and are indicated in the product table. For the latest information on CPR for Cables, you can visit our dedicated CPR Explained web page. We have created a series of short CPR videos to break down all the significant areas and have updated our 'CPR for Cables' guide, available for you to download.
Image representative of product style, product supplied may vary.
- CPR-Compliant options
- For popular Lonworks BMS system
- LSZH jacket ideal for installations in public buildings
KNX Cable
SKU:
SKU529
The KNX cable from FS Cables (also known as TP1 cable) features two twisted pairs of solid conductor with a foil screen and tinned copper drain wire in a green LSHF jacket. It has been tested and certified as being suitable for use in KNX systems and bears the KNX logo.
- CPR-compliant up to Class Cca s1a, d1, a1
- Certified by the KNX Association
- PVC, LSZH, duct grade & armoured versions
- London Underground (LU) approved version
Profibus DP Cable
SKU:
SKU532
A range of single pair Profibus cables for process and field communication in cell networks. The Profibus protocol is widely used for production and process automation applications providing transmission rates up to 12Mbits/sec.
- Suitable for Profibus systems
- Available in PVC, PUR, FEP, LSZH versions
- External duct grade or SWA (steel wire armoured) versions also available
Rubber TPE Spiral Cable
SKU:
SKU521
FSC offers both signal and power versions of retractable spiral cables. The variations in conductor size, insulation and sheath materials are enormous. Having decided on the conductor size and the number of cores it is important to choose the insulation and sheath materials most suitable for the task. The retracted length of the spiral can be made to your requirements up to 5m.
