PUR Screened Spiral Cable
Belcable offers both signal and power versions of retractable spiral cables. The variations in conductor size, insulation and sheath materials are enormous. Having decided on the conductor size and the number of cores it is important to choose the insulation and sheath materials most suitable for the task. The retracted length of the spiral can be made to your requirements up to 5m.
All feature a PUR (Polyurethane) sheath for excellent resistance to chemicals and oils. These PUR spiral cables are very well suited for flexible robotic applications and machinery.
These cables are manufactured to order, to meet your needs precisely. You can specify tail lengths (the straights at either end). The standard length is at least 150mm and they can be supplied in line or at right angles to the coil. Delivery is normally around 2-3 weeks but please check when ordering. Many other core combinations are available.
Please email your requirement to sales@belcable.com with the information completed below.
No. of Conductors:
Size of Conductors:
Screening:
Colour:
Extended Length:
Retracted Length:
Tail No.1 Type: Axial (Straight) / Tangent (Right Angle)
Tail No. 1 Length (mm):
Tail No. 2 Type: Axial (Straight) / Tangent (Right Angle)
Tail No. 2 Length (mm):
Image representative of product style, product supplied may vary.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage Rating: | |
| Working: | <0.25mm² to 100V |
| >0.5mm² to 300V | |
| Temperature Rating: | -25°C to +80°C |
| Approximate Extension Ratio: | 4:1 |
Fine copper wire strands of class 5 or 6. TPE insulation, colour coded cores, twisted together, overall tinned copper wire braid, PUR jacket.
RELATED PRODUCTS
Echelon LonWorks 16AWG Cable
SKU:
SKU539
A range of single pair Bus cables is available for the LonWorks system allowing convenient wiring via the Free Topology concept. Due to the popularity of the system for building management applications in the public sector these cables are now stocked in Low Smoke Halogen Free versions. Duct grade and SWA options can also be manufactured for quantities as low as 100m.
FieldBus Type A Cable
SKU:
SKU536
A single pair 18AWG Bi-Directional digital Databus Foundation Fieldbus cable for type A applications (31.25 KBits/sec).
The FS Cables Databus Foundation Fieldbus Type A cable is available in PVC, LSHF and SWA versions.
Image representative of product style, product supplied may vary.
- Suitable for Fieldbus Type A applications
- PVC or LSZH
- External grade versions also available

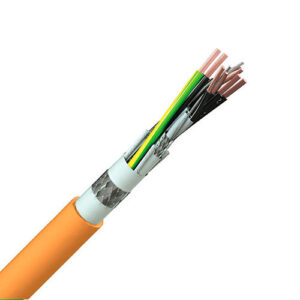

HF-275 PUR Servo & Feedback Cable
