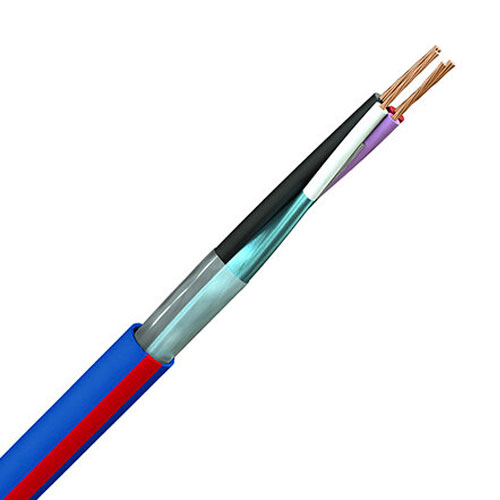

Velbus Lighting & HVAC Control Cable
The Velbus lighting & HVAC control cable has been designed and recommended for use on the Velbus modular home automation system. Providing the end user with seamless control over all aspects of their property, while saving on energy costs. This cable is Low Smoke Zero Halogen (LSZH) throughout, insulation and sheath, making it perfect for installing in the home and commercial properties.
- CPR-Compliant options
- LSZH throughout – insulation and sheath
- For Velbus home automation system
Featuring 1 pair for power and 1 pair for data, these cables can also be used on other applications.
CPR-Compliant options are available for this cable and are indicated in the product table. For the latest information on CPR for Cables, you can visit our dedicated CPR Explained web page. We have created a series of short CPR videos to break down all the significant areas and have updated our ‘CPR for Cables’ guide, available for you to download.
Image representative of product style, product supplied may vary.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Data Pair | Power Pair | |
| Conductors: | 22(7)AWG tinned copper strands | 18(7)AWG tinned copper strands |
| Insulation: | Polyethylene | Polyethylene |
| Colour Code: | Purple & white | Red & black |
| Conductor Resistance: | 58 Ohm/km @ 20°C | 23 Ohm/km @ 20°C |
| Capacitance: | Core to core 45pF/m nominal | |
| Screen: | Aluminium/polyester screen and 24(7)AWG TCu drain wire | |
| Nominal Impedance: | 120 Ohm |
| Voltage Rating: | 300V |
| Test Voltage: | 2.5kV for 5 Min |
| Temperature Rating: | 0°C to +70°C |
| Smoke Emission: | IEC 61034-1 & 2 |
| Halogen Emission: | IEC 60754-1 & 2 |
Pair bundles laid up with polyester fillers, polyester tape, blue LSHF sheath.
