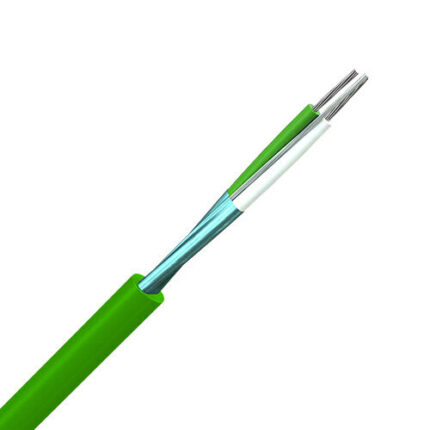

Thermocouple Cable PVC
Thermocouple cables carry a signal from a thermocouple probe to the temperature measuring unit to provide a temperature reading. Available screened or unscreened these cables are designed for use up to 105°C.
As standard they are supplied following the European colour code system.
Replace the blanks in the part code (__) with the thermocouple designation required. Please note, you won’t be able to amend the part number using the ‘Get Quote’ forms below, but please submit the one you require and we will contact you shortly after.
| KX = Kx | KB = KCB | JX = Jx | TX = Tx | EX = Ex | NX=Nx | RC = RCA | SC = SCA |
Image representative of product style, product supplied may vary.
- 105°C Rated
- ANSI colour code available
- Parallel twin versions can be supplied
Construction
Unscreened: Stranded conductors, PVC insulation, PVC sheath
Screened: Stranded conductors, PVC insulation, aluminium/polyester foil and Tcu drain wire, PVC sheath
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage Rating: | 300/500V |
| Operating temperature: | -20°C to +105°C |
| Design Standard: | EN 60584-3 |
RELATED PRODUCTS
EN 50288-7 Instrumentation Cable Collective Screen Unarmoured PVC
SKU:
SKU510
Low capacitance paired cables for use in instrumentation applications. Options include collective aluminium foil screen to prevent outside interference and individual & collective aluminium foil screen to prevent crosstalk between the pairs.
The EN 50288-7 standard allows for many variations including different voltage & temperature ratings, mechanical armours and fire barriers. If you cannot see the type required please call us, we will be able to help.
Image representative of product style, product supplied may vary.
- Lightweight
- 300/500V
- Screened

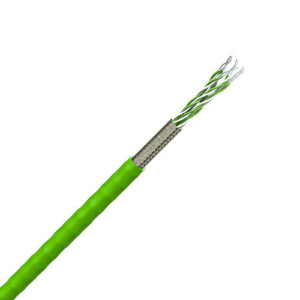

Thermocouple 260°C Cable
