Interbus Cable
The Interbus open ring topology allows integration of different field devices from control level down to sensor switches over one system. Unlike traditional ring systems Interbus uses one cable to route data back and forth to all devices. Each device or unit will amplify the signal before sending it on to the next station. The data is transmitted over a 3 pair screened cable. For remote applications a composite data and power cable is available.
Image representative of product style, product supplied may vary.
- PVC jacket for static applications
- PUR version available for flexing applications
- 3 pair or 3 pair + power
Construction
Three Pair
Plain copper conductors 0.22mm², PE insulation, cores twisted into pairs, pairs bunched and polyester taped, copper wire braid, PVC sheath on static cables and a PUR sheath on dynamic cables.
Three Pair + Power
Data Cores
Plain copper conductors 0.22mm², PE insulated & twisted into pairs.
Power Cores
Plain copper conductors 1.0mm² PE insulation.
Cores and pairs bunched together, polyester tape, copper wire braid, PUR sheath.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage Rating: | 300V |
| Temperature Rating: | |
| Flexing: | -30°C +70°C |
| Static: | -5°C +50°C |
| Velocity of Propagation: | 66% (Data Pairs) |
| Capacitance: | |
| Core to shield: | 51pF/m |
| Nominal Impedance: | 100 Ohms |
| Colour Code: | |
| Pairs | Brown/white, green/yellow, pink/grey |
| Cores | Red, blue, green |
CFS-TCWB – Collective Foil Screen, Tinned Copper Wire Braid
RELATED PRODUCTS

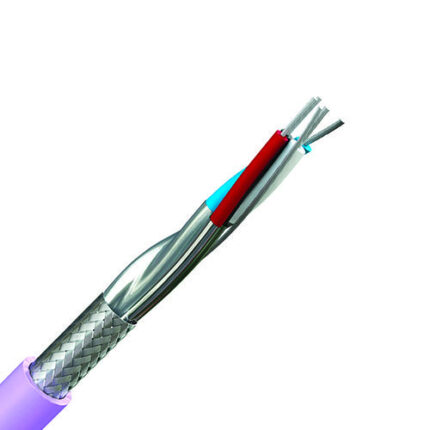

DeviceNet Thick Cable
SKU:
SKU542
Designed for use on Allen Bradley DeviceNet™ systems, the “thick” cable construction incorporates a power and data pair for backbone wiring. Several sheathing options are available for different installation environments. These cables are also referred to as DeviceNet™ Trunk cables.
Allen Bradley DeviceNet™ is a Rockwell Automation system supported by ODVA.
Image representative of product style, product supplied may vary.
HF-120-C Screened Cable
SKU:
SKU523
Hi-Flex 120-C screened data cables are designed to last even in the most hostile chain or free movement applications. The HF-120-C copper braid screen protects the signal from EMI while the TPE insulation supports the highly flexible conductors. Abrasion is reduced to a minimum by using a polyurethane low friction sheath. For maximum life Hi-Flex Data cables should not be exposed to torsional stresses or twisting.
KNX Cable
SKU:
SKU529
The KNX cable from FS Cables (also known as TP1 cable) features two twisted pairs of solid conductor with a foil screen and tinned copper drain wire in a green LSHF jacket. It has been tested and certified as being suitable for use in KNX systems and bears the KNX logo.
- CPR-compliant up to Class Cca s1a, d1, a1
- Certified by the KNX Association
- PVC, LSZH, duct grade & armoured versions
- London Underground (LU) approved version
Profibus DP Cable
SKU:
SKU532
A range of single pair Profibus cables for process and field communication in cell networks. The Profibus protocol is widely used for production and process automation applications providing transmission rates up to 12Mbits/sec.
- Suitable for Profibus systems
- Available in PVC, PUR, FEP, LSZH versions
- External duct grade or SWA (steel wire armoured) versions also available

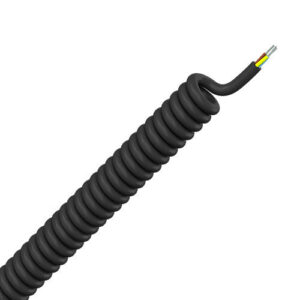

PUR Screened Spiral Cable
