EN 50288-7 Instrumentation Cable Collective Screen Unarmoured PVC
Low capacitance paired cables for use in instrumentation applications. Options include collective aluminium foil screen to prevent outside interference and individual & collective aluminium foil screen to prevent crosstalk between the pairs.
The EN 50288-7 standard allows for many variations including different voltage & temperature ratings, mechanical armours and fire barriers. If you cannot see the type required please call us, we will be able to help.
Image representative of product style, product supplied may vary.
- Lightweight
- 300/500V
- Screened
Construction
Type: RE-2Y(st)Y – Collective aluminium tape screen.
Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, PE insulation, laid up as cores or twisted into pairs, overall aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, PVC sheath – black or blue.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage Rating: | 300V |
| Mutual Capacitance: | < 150nF/km |
| L/R Ratio: | |
| 0.5mm² & 0.75mm²: | 25 µH/Ohm |
| 1.3mm²: | 40 µH/Ohm |
| Temperature Rating: | -30°C to +70°C fixed (minimum -5°C for installation) |
| Conductor Stranding: | EC 60228 Class 1, 2 or 5 plain copper conductors |
| Flame Retardant: | IEC 60332-1-2 |
| Manufactured To: | EN 50288-7 |
1.5mm² conductor sizes are also available on request. These cables have a slightly larger outer diameter.
Larger pair counts are available on request as are alternative voltage ratings.
| Pairs: | Black/white and numbered. |
RELATED PRODUCTS
Thermocouple 260°C Cable
SKU:
SKU517
Thermocouple cables manufactured from PTFE fluoropolymer can be used in high temperature applications up to 260°C. Specific designs can be manufactured to meet your needs.
As standard they are supplied following the European colour code system.
Replace the blanks in the part code (__) with the thermocouple designation required when emailing / calling us for a quote. Please note, you won't be able to amend the part number using the 'Get Quote' forms below, but please submit the one you require and we will contact you shortly after.
| KX = Kx | KB = KCB | JX = Jx | TX = Tx | EX = Ex | NX=Nx | RC = RCA | SC = SCA |
Image representative of product style, product supplied may vary.
- 260°C Rated
- ANSI colour code available
- Chemical resistant

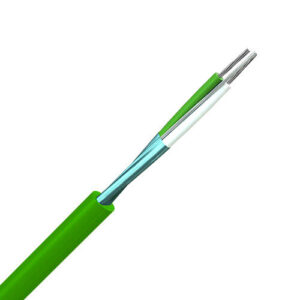

Thermocouple Cable LSHF
