Alternative to Belden 8723 Cable

Alternative to Belden 8723 Cable

Individually screened two pair data Cable 22AWG, alternative to Belden 8723. Belden 8723 cables are used extensively in the security industry for CCTV applications including telemetry. Also suitable for computer and instrumentation applications where it is important to provide a high level of screening from external sources, together with low levels of cross talk between pairs.

  • CPR-Compliant options
  • High quality alternative to genuine Belden
  • Cut to length required
  • LSF or LSZH sheath
  • External duct grade and armoured versions
Compare
SKU: SKU162 Categories: ,

LSF, PVC and Low Smoke Halogen Free versions and external grade armoured versions are available where indicated.

CPR-Compliant options are available for this cable and are indicated in the product table. For the latest information on CPR for Cables, you can visit our dedicated CPR Explained web page. We have created a series of short CPR videos to break down all the significant areas and have updated our ‘CPR for Cables’ guide, available for you to download.

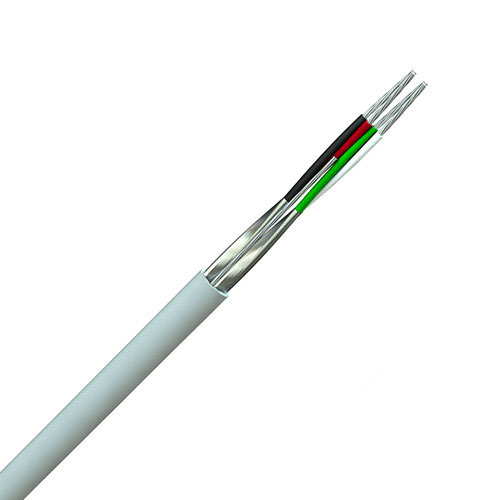

Image representative of product style, product supplied may vary.

Construction

Individually Screened
Tinned copper conductor 22(7) AWG 0.35mm², polypropylene insulation, red/black & green/white conductors, twisted into pairs, each pair aluminium/polyester foil screened, common tinned copper drain wire (24AWG), LSF sheath.
The duct grade version has a black UV stable polyethylene sheath over the standard LSF cable to provide a high degree of weather resistance, while the armoured version is protected by heavy galvanised steel wires and an external grade sheath.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SALES ENQUIRIES

Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.

CABLES HOUSE Cables & Wires Trading LLC

Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates
Send Enquiry
Voltage Rating: 300V
CE: 450/750V†
Nominal Impedance: 52 Ohms
Capacitance:
Core to core: 108 pF/m
Core to screen: 203 pF/m
Colour Code: Red / black & green / white

† Applies to CE marked FSC branded stock only.
