Alternative to Belden 3106A Cable
Alternative to Belden 3106A data cable. RS485, single pair 22AWG cable with a single unscreened core in an overall foil & braid screen. This cable is also suitable for use on Modbus systems which provide a master/slave communication between intelligent automation devices. You can view the FSC range of cables for use on Modbus systems here. This alternative to Belden 3106A cable also uses a black LSHF (Low Smoke Halogen Free) outer sheath to minimise smoke in the event of a fire.
- High-quality alternative to genuine Belden 3106A
- Cut to length
- LSZH sheath
- For use on Modbus systems

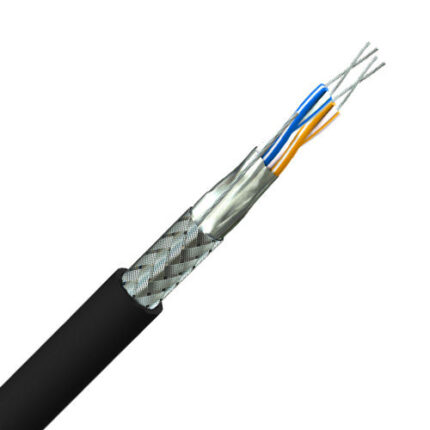

Image representative of product style, product supplied may vary.
Construction
Tinned copper conductors 22(7)AWG, foamed polyethylene insulation, cores twisted into a pair, single core unscreened, aluminium overall foil screen & tinned copper wire braid – 65% coverage, Low Smoke Halogen Free sheath.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage Rating: | 300V |
| CE: | 450/750V† |
| Temperature Rating: | -20°C to +70°C |
| Nominal Impedance: |
120 Ohms |
| Capacitance @ 1hz: |
|
| Core to core: | 36pF/m |
| Core to shield: | 69pF/m |
| Colour Code: |
|
| Pair | White/Orange Stripe, Orange/White Stripe |
| Core | Blue, White |
2201PCODGH contains one individually screened pair and an unscreened core.
† Applies to CE marked FSC branded stock only.
