FieldBus Type A Cable
A single pair 18AWG Bi-Directional digital Databus Foundation Fieldbus cable for type A applications (31.25 KBits/sec).
The FS Cables Databus Foundation Fieldbus Type A cable is available in PVC, LSHF and SWA versions.

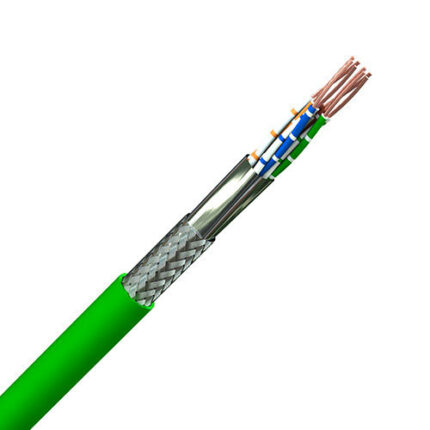

Image representative of product style, product supplied may vary.
- Suitable for Fieldbus Type A applications
- PVC or LSZH
- External grade versions also available
Construction
Tinned copper conductors 18(7)AWG 0.88mm², polyolefin insulation, aluminium/polyester foil screen, tinned copper drain wire (20AWG) PVC, LSHF or SWA sheath.
Only logged in customers who have purchased this product may leave a review.
SALES ENQUIRIES
Belcable's Products have Authorized Dealers in Middle east and United Kingdom.
Kindly Contact them to place Your Order.
CABLES HOUSE Cables & Wires Trading LLC
Cables House Cables & Wires Trading LLC Dubai. United Arab Emirates| Voltage: | 300V | |
| Operating Temperature: | +60°C | |
| Velocity of Propagation: | 66% | |
| Nominal Impedance: | 100 Ohms | |
| UL Style: | 2493 | |
| Conductor Resistance: | 17.87Ω/km @ 20°C | |
| Nominal Attenuation: | MHz | dB/100m |
| 0.01 | 0.20 | |
| 0.10 | 0.62 | |
| 0.50 | 2.46 | |
| 1.00 | 3.45 |
CAT – Collective Aluminium Tape
RELATED PRODUCTS
CC-Link FieldLink Cable
SKU:
SKU533
Developed by Mitsubishi, CC-Link allows high speed communication between controllers and field devices. The CC-Link system is particularly popular in Asia and is used worldwide for time critical applications in conjunction with Mitsubishi Automation products. CC-Link is certified by CLPA and ensures product compatibility.
As a registered member of the CC-Link Partner Association, FS Cables offer a 3 core CC-Link cable for use on the CC-Link system, suitable for data rates up to 10MB/s, in either PVC or SWA (steel wire armoured) versions.
Image representative of product style, product supplied may vary.
- Registered member of the CC-Link Partner Association
- Suitable for data rates up to 10MB/s
- PVC or SWA for external applications
DeviceNet Thin Cable
SKU:
SKU541
“Thin” cables are designed to connect sensors, actuators and switching to the DeviceNet™ backbone (Thick cable) on the Allen Bradley DeviceNet™ system. Similar in construction to the backbone cable, the “Thin” cable incorporates a power and data pair. Several sheathing options are available for different installation environments. These cables are also referred to as DeviceNet™ Drop cables.
- Power and data pair
- Several sheathing options available
HF-120 Unscreened Cable
SKU:
SKU522
Hi-Flex 120 data cables are designed to last even in the most hostile chain or free movement applications. Abrasion is reduced to a minimum by using a Polyurethane low friction sheath. For maximum life Hi-Flex Data cables should not be exposed to torsional stresses or twisting. Many sizes now available with UL approval.
Image representative of product style, product supplied may vary.
- Low friction polyurethane sheath for abrasion resistance
- Fleece tapes and talcum to strengthen the core bundle
- Wide range of sizes
- For flexing applications
PUR Screened Spiral Cable
SKU:
SKU519
Belcable offers both signal and power versions of retractable spiral cables. The variations in conductor size, insulation and sheath materials are enormous. Having decided on the conductor size and the number of cores it is important to choose the insulation and sheath materials most suitable for the task. The retracted length of the spiral can be made to your requirements up to 5m.
Rubber TPE Spiral Cable
SKU:
SKU521
FSC offers both signal and power versions of retractable spiral cables. The variations in conductor size, insulation and sheath materials are enormous. Having decided on the conductor size and the number of cores it is important to choose the insulation and sheath materials most suitable for the task. The retracted length of the spiral can be made to your requirements up to 5m.
